In the realm of high-precision metrology, the accuracy of a Video Measuring Machine (VMM) is not just a result of its lens quality, but the harmonious integration of its motion control and feedback systems. At DONGGUAN CITY HANDING OPTICAL INSTRUMENT CO., LTD., we prioritize the structural integrity and component precision of every Optical Measuring System we manufacture. Today, we delve into how exposed linear encoders fundamentally enhance the reliability of our OMM series.
The Foundation of Metrology: Linear Scales and Encoders

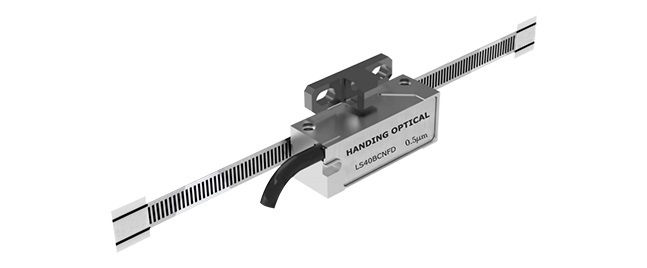

Why do we emphasize the use of high-quality linear scales? In a Video Measuring Instrument, the displacement of the X, Y, and Z axes must be tracked with nanometer-level sensitivity. We utilize high-performance exposed linear encoders in our premium models. Unlike enclosed versions, exposed encoders offer minimal friction and are ideal for high-speed, high-accuracy applications where thermal expansion must be meticulously managed.
These optical encoders work by using a non-contact read head that scans a precision-etched scale. This non-contact mechanism ensures that there is no mechanical wear over time, allowing our Video Measuring Machine to maintain its factory-calibrated accuracy even after years of intensive industrial use.
Advanced Imaging Integration
Our Video Measuring Systems combine these precise encoders with high-definition optical components. When the linear encoders provide sub-micron positioning data, our software synchronizes this with the visual edge-detection algorithms. This synergy allows for the measurement of complex geometries—such as micro-gears, PCB traces, and semiconductor components—with unparalleled repeatability.
Diverse Range for Diverse Needs
Whether you require a Manual Video Measuring Machine for spot checks or a Bridge-type Video Measuring Machine for large-format glass or panel inspection, we have engineered each system to meet rigorous international standards. Our product line also includes incremental encoders and absolute encoders, ensuring that we can provide the right level of feedback complexity for your specific budget and precision requirements.
Why Partner with Handing Optical?
As a dedicated Video Measuring Machine Manufacturer, we don’t just sell equipment; we provide long-term metrological stability. Our commitment to using superior optical linear encoders and robust mechanical bases ensures that our customers receive a non-contact measuring machine that excels in both performance and durability.
For detailed technical specifications or to request a white paper on our latest Optical Measuring Machine developments, please reach out to our engineering department.
